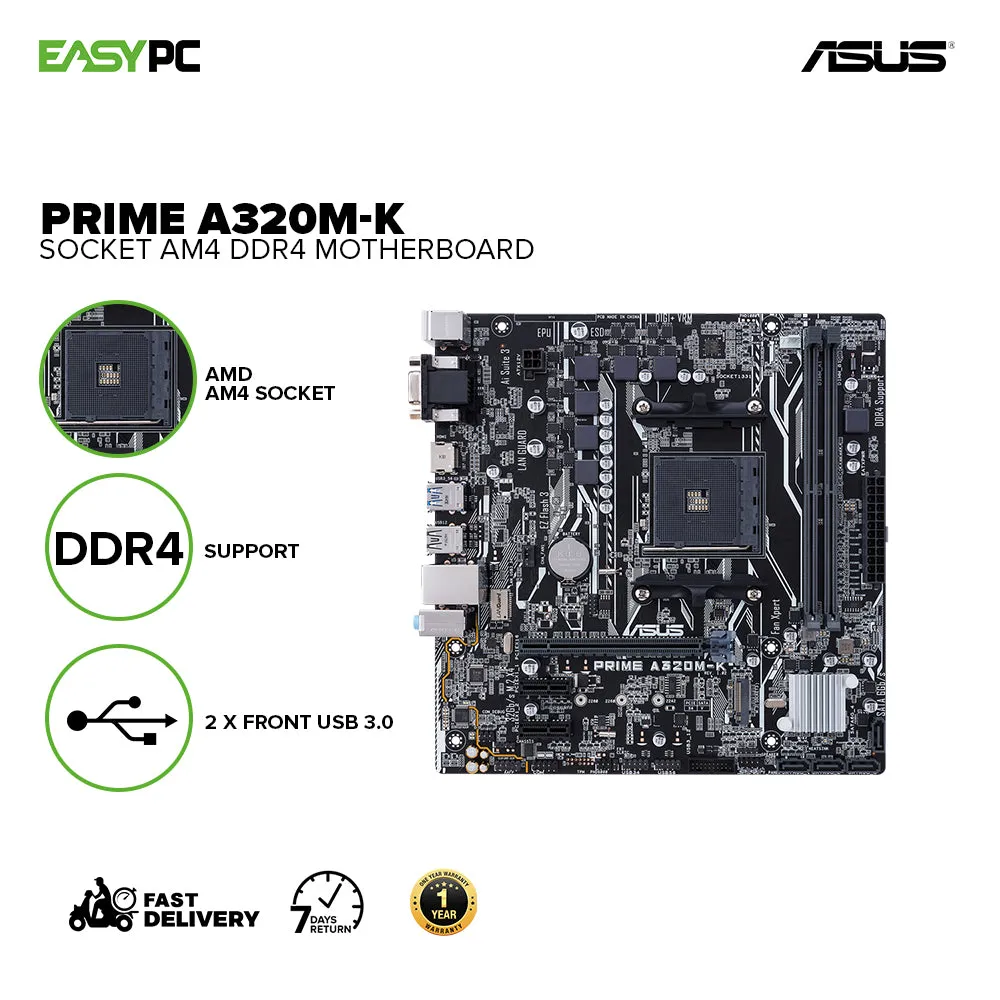

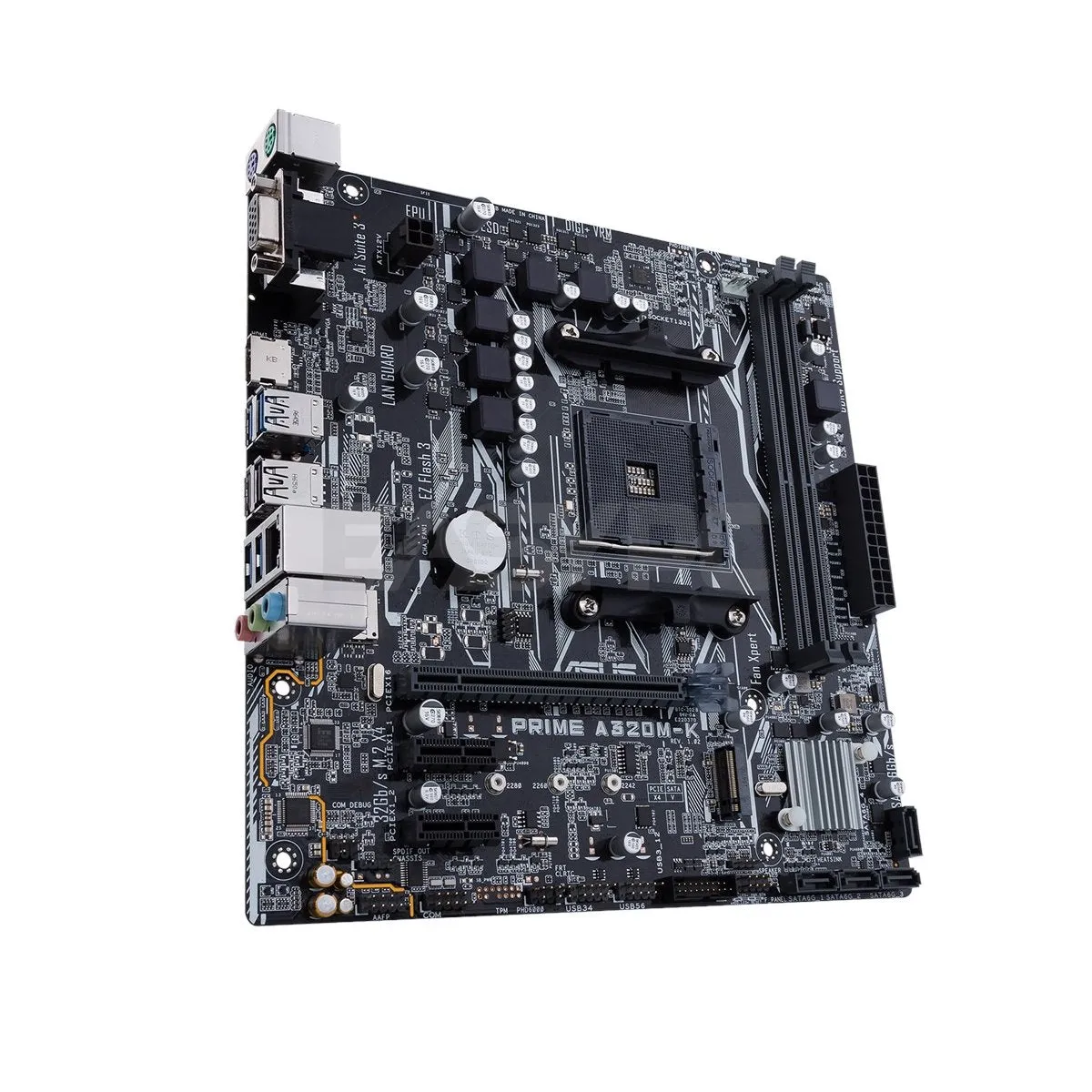

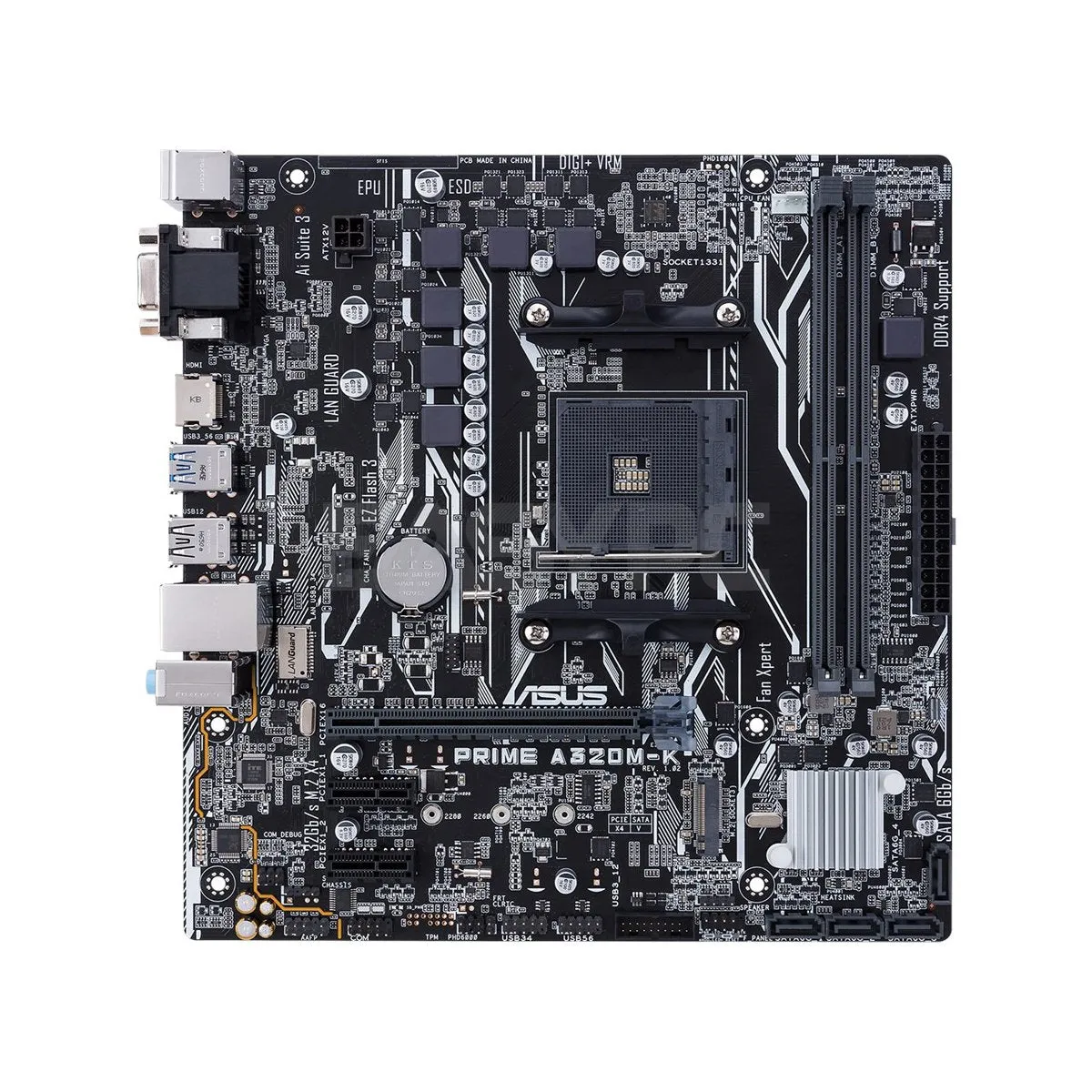

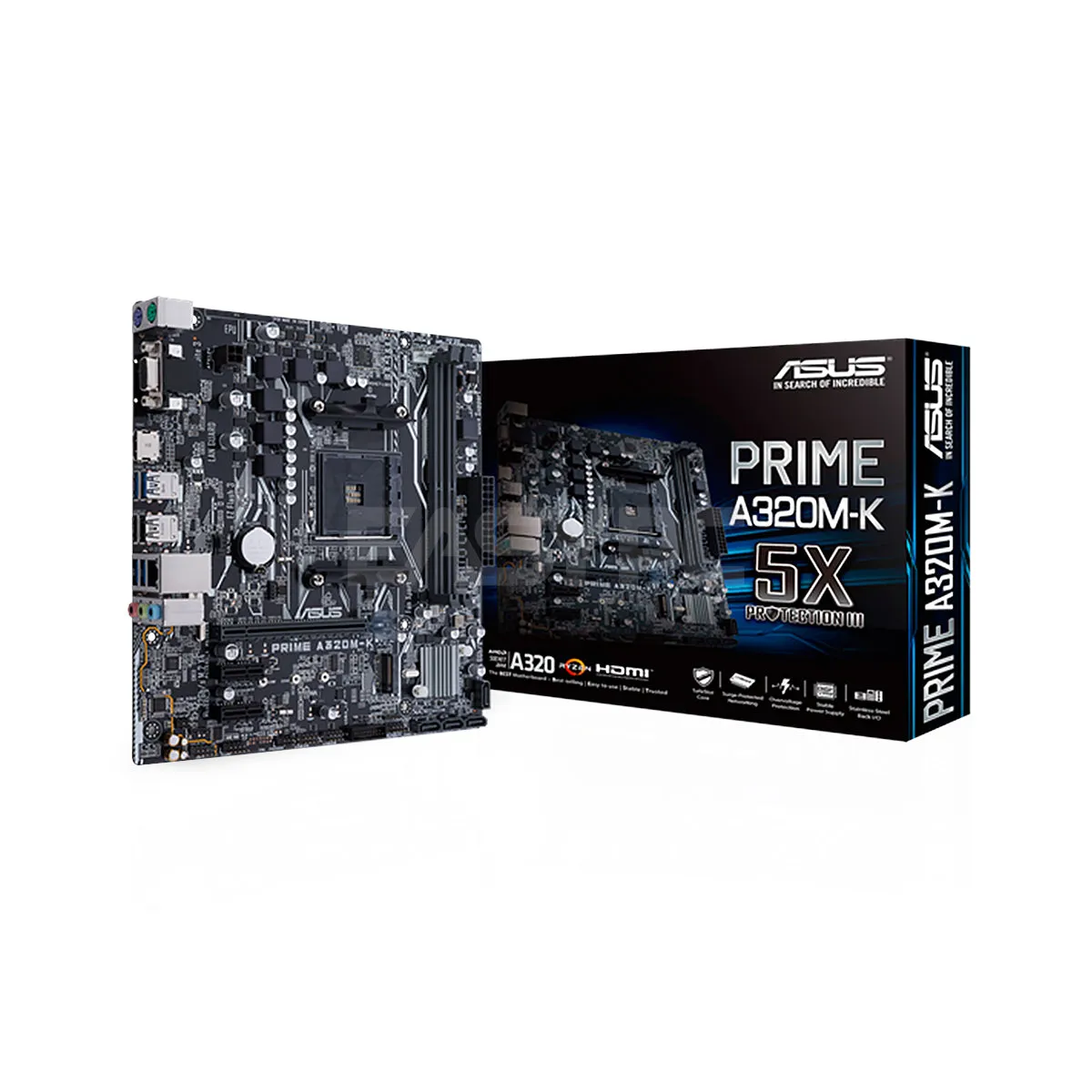

Asus Prime A320M K Motherboard with LED Lighting, DDr4 3200Mhz, USB 3.0 Socket Am4 Motherboard

Product Description

The ASUS Prime A320M-K AM4 DDR4 Motherboard offers reliable performance. With AM4 socket support and DDR4 compatibility, it ensures basic multitasking and computing needs. Upgrade for a cost-effective, dependable, and straightforward build experience. Ideal for users seeking a budget-friendly and functional motherboard.

Product Specifications

• Brand: Asus
• Model: Prime A320M-K
• AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/7th Generation A-series/Athlon X4 Processors
• * Refer to www.asus.com for CPU support list
• Chipset: AMD A320
• Memory
• 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
• 2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
• Amd 7th Generation Ryzen/Athlon Support
• 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered Memory
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.
• * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
• Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics /Athlon with Radeon Vega Graphics /7th Generation A-Series APU
• Multi-VGA output support : HDMI/RGB ports
• - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
• - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
• Maximum shared memory of 2048 MB (for iGPU exclusively)
• Expansion Slots
• 3rd/2nd/1st Gen AMD Ryzen Processors
• 1 x PCIe 3.0/2.0 x16 (x16 mode)
• 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics /7th Generation A-series/Athlon X4 Processors
• 1 x PCIe 3.0/2.0 x16 (x8 mode)
• AMD Athlon with Radeon Vega Graphics Processors
• 1 x PCIe 3.0/2.0 x16 (x4 mode)
• AMD A320 chipset
• 2 x PCIe 2.0 x1
• Storage
• AMD A320 chipset :
• 4 x SATA 6Gb/s port(s), gray,
• Support Raid 0, 1, 10
• 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics :
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• Ryzen/Athlon Support
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
• LAN
• Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
• Audio
• Realtek ALC887 8-Channel High Definition Audio CODEC
• USB Ports
• 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors :
• 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
• AMD A320 chipset :
• 2 x USB 3.0 port(s) (2 at mid-board)
• AMD A320 chipset :
• 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
• Special Features
• ASUS 5X Protection III :
• - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
• - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
• - ASUS Overvoltage Protection: World-class circuit-protecting power design
• - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
• - ASUS DIGI VRM: 6 Phase digital power design
• ASUS Exclusive Features :
• - AI Suite 3
• - Ai Charger
• ASUS Quiet Thermal Solution :
• - Stylish Fanless Design Heat-sink solution
• - ASUS Fan Xpert
• ASUS EZ DIY :
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• - Multi-language BIOS
• ASUS Q-Design :
• - ASUS Q-Slot
• - ASUS Q-DIMM
• Operating System Support
• Windows 10

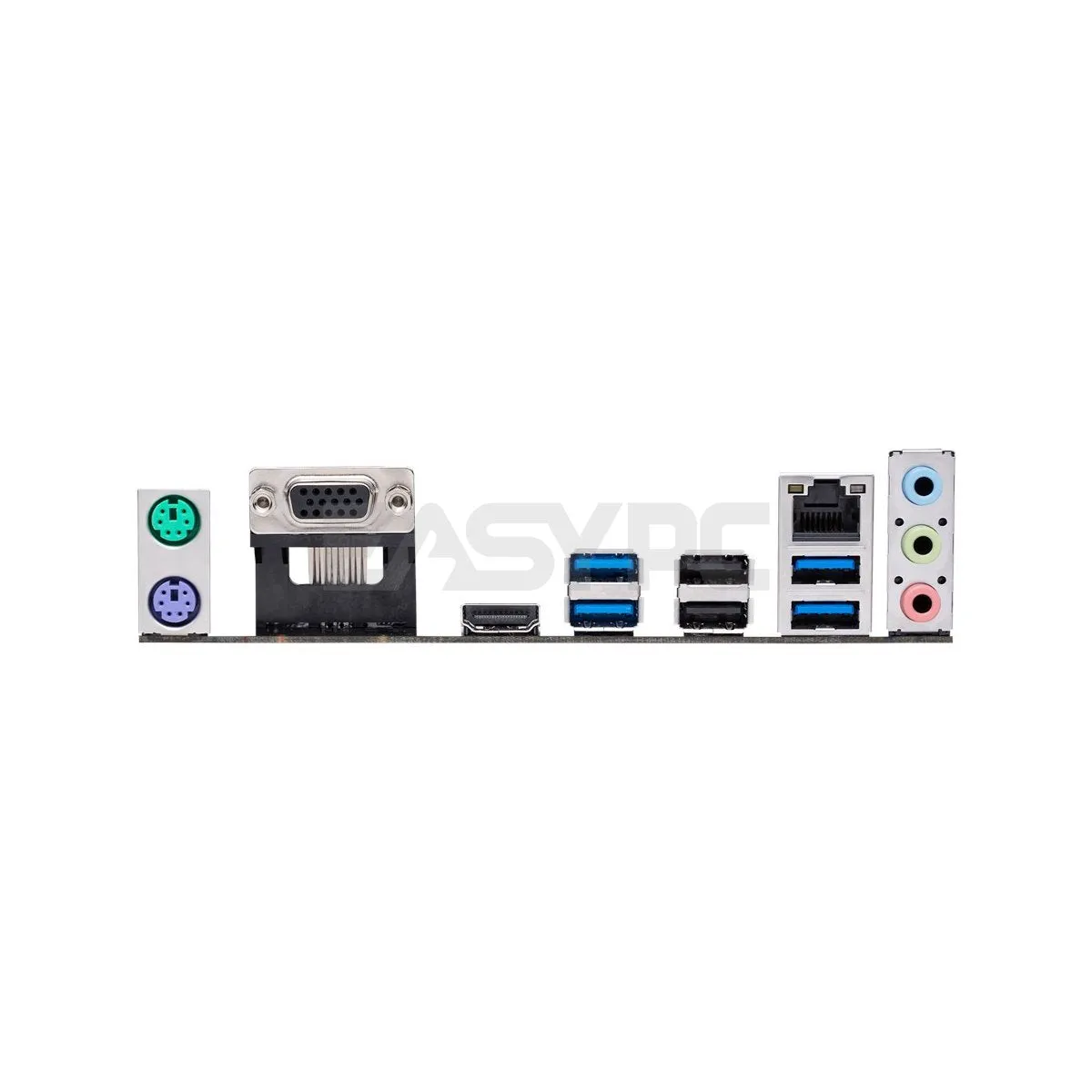

• Back I/O Ports
• 1 x PS/2 keyboard (purple)
• 1 x PS/2 mouse (green)
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.1 Gen 1 (blue)
• 2 x USB 2.0
• 3 x Audio jack(s)
• Internal I/O Ports
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x Chassis Fan connector(s) (1 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x Speaker connector
• Accessories
• User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x Supporting DVD
• BIOS
• 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
• Operating System
• Windows 10 64-bit
• Windows 7 64-bit *1
• Form Factor
• mATX Form Factor
• 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
• Note
• *1 Windows 7 64-bit is only supported when using AMD Ryzen 2nd Generation/ Ryzen 1st Generation / 7th Generation A-series/ Athlon X4 Processors.
• Features:
• 5X Protection III: Multiple hardware safeguards for all-round protection
• LED illumination: Lighting control for audio trace paths
• Native M.2: Lightning-fast storage speeds
• One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3
